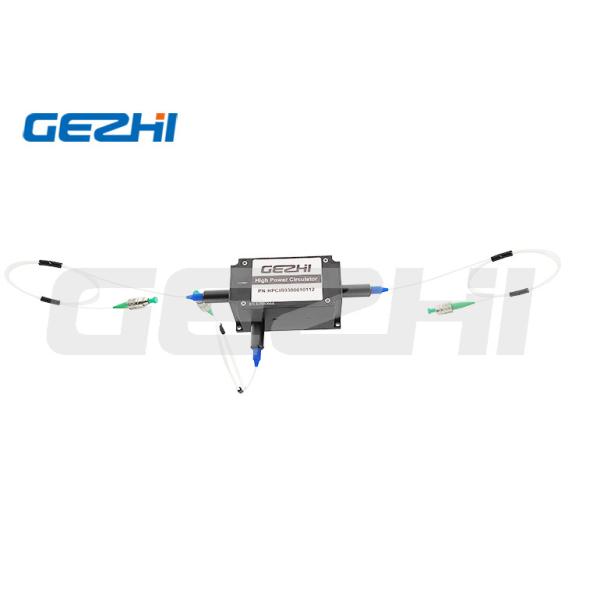

Custom Polarization Maintaining Optical Circulator TGG Based For Fiber Amplifier

Brand Name : GEZHI or OEM

Model Number : PM Circulator

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Port type : 3-port

Wavelength : Customizable

Warranty Time : 3years

Network : optical fiber network

Contact Now

Customizable wavelength Polarization Maintaining Optical Circulator TGG based Application for Fiber Amplifier

Product Description

The key functionality of a fiber optical circulator is directing light sequentially from port to port with low loss in only one direction which results in the separation of signals which travel along an optical fiber in opposite directions.

Gezhi Photonics manufactures various in-line fiber optical circulators, including high-power optical circulators, single-mode & multimode fiber circulators (polarization-independent & polarization-maintaining fiber optical circulators). These fiber circulators are customizable upon request.
Custom Polarization Maintaining Optical Circulator TGG Based For Fiber Amplifier Custom Polarization Maintaining Optical Circulator TGG Based For Fiber Amplifier Custom Polarization Maintaining Optical Circulator TGG Based For Fiber Amplifier

Features

*Low Insertion Loss

*High Return Loss

*High Isolation

*High Stability & Reliability

Applications

*Fiber Amplifier

*Testing Instrument

*Fiber Sensor

*Medical Equipment

Specifications

Parameters Unit Values
Operating Wavelength nm 532 633 or 680 680 780, 808, 850 or 930 980 1030 1053 or 1064 1150
Wavelength Bandwidth nm ±5 ±5 ±10 ±10 ±10 ±10 ±5
Insertion Loss dB ≤2.5 ≤2.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5
Min. Isolation dB ≥20 ≥20 ≥22 ≥22 ≥22 ≥22 ≥22
Peak Isolation dB ≥25 ≥25 ≥26 ≥25 ≥25 ≥25 ≥25
Extinction Ratio(Type B) dB ≥18 ≥18 ≥18 ≥18 ≥18 ≥18 ≥18
Extinction Ratio(Type F) dB ≥20 ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Fiber Type / PM460 PM630 PM780 PM980 PM980 PM980 or 1060
Max Power Handling (CW) W 0.02 0.05 0.5, 5,10 or 20 0.5, 5 or 20 0.5,5,20 0.5,5,20 0.5,5,20
Crosstalk dB

≥45
Return Loss dB

≥45
Tensile Load N

≤5
Operating Temperature °C

0~+60
Storage Temperature °C

-10~+75
Package Dimension nm

70x28x26

Note:

1.Above specifications are for device without connector, If with connector, IL will be 0.3dB higher, return loss with be reduce 5dB and Extinction Ratio will reduce 2dB.

2. If there is pulse application, please be sure to inform us of pulse energy and peak power.

Package Dimensions
Custom Polarization Maintaining Optical Circulator TGG Based For Fiber Amplifier

Ordering Information
①Port: 3=3port
②Wavelength: 532; 633; 680; 780; 808; 850; 930; 980; 1030; 1053; 1064; 1150nm; S=Specify
③Axis Alignment: B=Both axis working; F=Slow axis working, Fast axis blocked; N=Non-PM type is available
④Power Handling: 0L=0.5W; 01=1W; 02=2W; 10=10W; 10=20W; S=Specify
⑤Fiber Type : PM460; PM630; PM780; PM980; PM1060; S=Specify
⑥Package Dimensions: T2=70x28x26mm; S=Specify
⑦Pigtail Type: 00=bare fiber; 09=900um loose tube
⑧Fiber Length: 08=0.8m; 10=1m; S=Specify
⑨Connector Type: FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify
⑩Peak Power for Pulse: 00=Continuous Wave, 10=10kW, 20=20kW, SS=Specified
