PLC Splitter SC/UPC 1*4 Insert Type product description
PLC Splitter SC/UPC 1*4 Insert Type fiber optic plc splitter

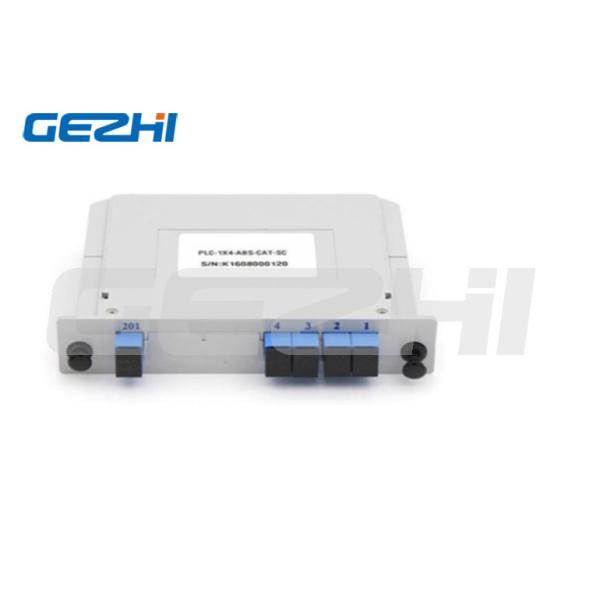

PLC Splitter SC/UPC 1*4 Insert Type is 1×4 PLC Fiber Optic Splitter Box SC/UPC Connector Insert Type Applied for optical networks
Planar waveguide optical splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate, which has the characteristics of small size, wide working wavelength range, high reliability and good spectroscopic uniformity, especially used in passive optical networks (EPON, GPON, etc.) to connect the central office and terminal equipment and realize the splitting of optical signals. Beiyi Fibercom specializes in the development and production of 1×N and 2×N full series of PLC planar waveguide optical splitters, packaging methods include steel tube packaging, ABS box, 1U rack and Mini module, 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 1×128, 2×2, 2×4, 2×8, 2×16, 2×32, 2×64, 2×128.
PLC Splitter SC/UPC 1*4 Insert Type Features
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40Celsius to 85Celsius
- High Reliability and Stability
PLC Splitter SC/UPC 1*4 Insert Type Specifications
| 1*N Insert Type PLC Specifications |
| Items | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | Unit |
| Insertion loss | ≤4.2 | ≤7.20 | ≤10.5 | ≤13.5 | ≤16.9 | ≤20.5 | dB |
| Uniformity | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.1 | ≤1.5 | ≤2.0 | dB |
| Modular package size | 100X80X10 | 120x80x18 | 140x115x18 | mm |
| (ABS Black Box) | Screw hole spacing: 74×70 | Screw hole spacing: 80×74 | crew hole spacing: 106×100 |
| (LxWxH) | | | |
| Test wavelength | 1310&1490&1550 | nm |
| Operating wavelength range | 1260～1650 | nm |
| Polarization-dependent losses | < 0.2 | < 0.3 | dB |
| directionality | >55 | dB |
| Return loss | >55 | dB |
| Operating temperature | -40~+85 | ℃ |
| Storage temperature | -40~+85 | ℃ |
| 2*N Insert Type PLC Specifications |
| Items | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | 单位 |
| Insertion loss | ≤4.2 | ≤8.0 | ≤11.0 | ≤14.3 | ≤17.5 | ≤20.5 | dB |
| Uniformity | 0.6 | ≤1.5 | ≤1.5 | ≤1.8 | ≤2.3 | ≤2.5 | dB |
| Modular package size | 100x80x10 | 120x80x18 | 140x115x18 | mm |
| (ABS Black Box) | Screw hole spacing: 74×70 | Screw hole spacing: 80×74 | crew hole spacing: 106×100 |
| (LxWxH) | | | |
| Test wavelength | 1310&1490&1550 | mm |
| Operating wavelength range | 1260～1650 | nm |
| Polarization-dependent losses | < 0.2 | < 0.3 | dB |
| directionality | >55 | dB |
| Return loss | >55 | dB |
| Operating temperature | -40~+85 | ℃ |
| Storage temperature | -40~+85 | ℃ |
PLC Splitter SC/UPC 1*4 Insert Type Applications
- Fiber optic equipment & systems
- CATV networks
- Data communications
- Passive Optical Networks
FAQ
Q1:Can I have a sample order? What is your MOQ? A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
